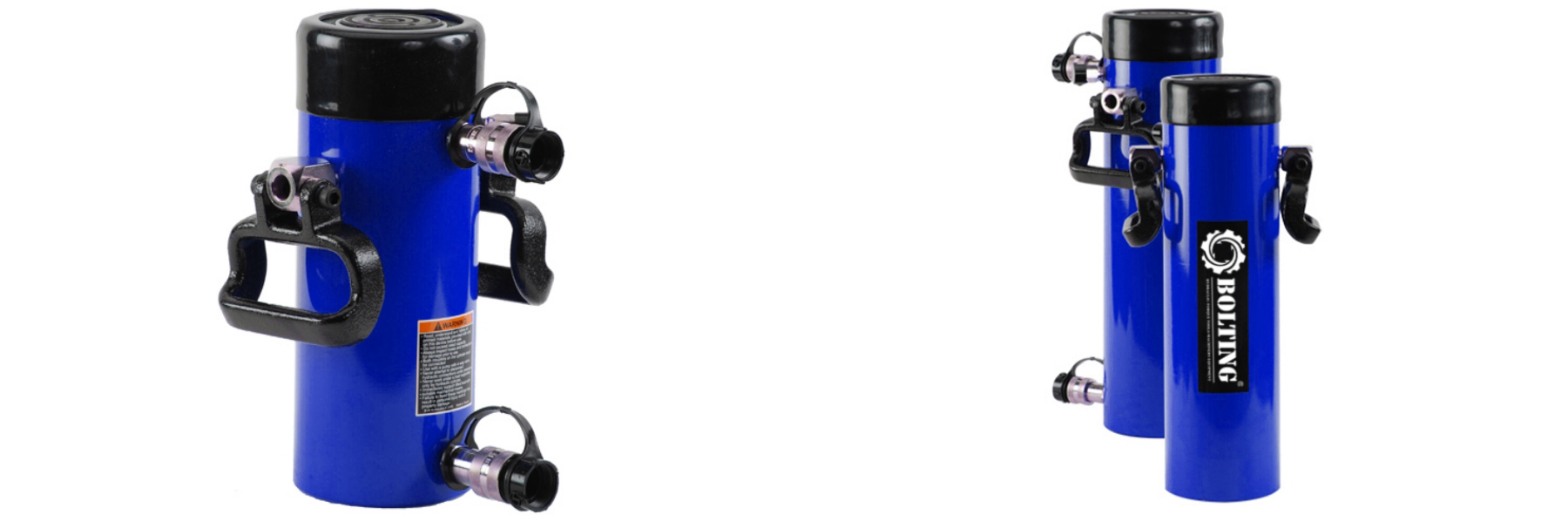

Product Introduction
・Collar threads, plunger threads and base mounting holes for easy fixturing;
・Baked enamel finish for increased corrosion resistance;
・Removable hardened saddles protect plunger during lifting and pressing;
・Built-in safety valve prevents accidental over-pressurization;
・Plunger wiper reduces contamination, extending cylinder life;
・232-3/8 included on all models;
| Model | Capacity Class（Ton） | Oil Capacity （cm³） | Stroke（mm） | Collapsed Height（mm） | Outside Diameter（mm） | Inside Diameter（mm） | Spindle Diameter（mm） | External Thread（in） | Thread Length （mm） | Weight（kg） | |
| Push | Pull | ||||||||||
| RR-1010 | 10 | 3.3 | 368 | 254 | 409 | 73 | 42.9 | 34.9 | 2-1/4″ | 26 | 12 |
| RR-1012 | 442 | 305 | 457 | 73 | 42.9 | 34.9 | 2-1/4″ | 26 | 14 | ||
| RR-308 | 30 | 5.3 | 879 | 209 | 387 | 101 | 73.2 | 54.1 | 3-5/16″ | 49 | 18 |
| RR-3014 | 1549 | 368 | 549 | 101 | 73.2 | 54.1 | 3-5/16″ | 49 | 29 | ||
| RR-506 | 50 | 10 | 1111 | 156 | 331 | 127 | 95.2 | 79.5 | 5″ | 44 | 30 |
| RR-5013 | 2378 | 334 | 509 | 127 | 95.2 | 79.5 | 5″ | 44 | 52 | ||
| RR-5020 | 3638 | 511 | 733 | 127 | 95.2 | 79.5 | 5″ | 44 | 68 | ||
| RR-756 | 75 | 16 | 1601 | 156 | 347 | 146 | 114.3 | 95.2 | 5-3/4″ | 38 | 41 |
| RR-7513 | 3417 | 333 | 525 | 146 | 114.3 | 95.2 | 5-3/4″ | 38 | 68 | ||
| RR-1006 | 100 | 43 | 2238 | 168 | 357 | 177 | 130.3 | 95.2 | 6-7/8″ | 50 | 61 |
| RR-10013 | 4439 | 333 | 524 | 177 | 130.3 | 95.2 | 6-7/8″ | 50 | 93 | ||
| RR-10018 | 6132 | 460 | 687 | 177 | 130.3 | 95.2 | 6-7/8″ | 50 | 117 | ||
| RR-1502 | 150 | 67 | 1129 | 57 | 196 | 203 | 158.8 | 114.3 | 8″ | 55 | 49 |
| RR-1506 | 3090 | 156 | 385 | 203 | 158.8 | 114.3 | 8″ | 55 | 93 | ||
| RR-15013 | 6597 | 333 | 582 | 203 | 158.8 | 114.3 | 8″ | 55 | 124 | ||
| RR-15032 | 16145 | 815 | 1116 | 203 | 158.8 | 114.3 | 8″ | 55 | 238 | ||
| RR-2006 | 200 | 102 | 4332 | 152 | 430 | 247 | 190.5 | 133.4 | 9-3/4″ | 54 | 147 |
| RR-20013 | 9405 | 330 | 608 | 247 | 190.5 | 133.4 | 9-3/4″ | 54 | 199 | ||
| RR-20018 | 13025 | 457 | 765 | 247 | 190.5 | 133.4 | 9-3/4″ | 54 | 204 | ||
| RR-20024 | 17385 | 610 | 917 | 247 | 190.5 | 133.4 | 9-3/4″ | 54 | 279 | ||
| RR-20036 | 26049 | 914 | 1222 | 247 | 190.5 | 133.4 | 9-3/4″ | 54 | 383 | ||
| RR-20048 | 34741 | 1219 | 1527 | 247 | 190.5 | 133.4 | 9-3/4″ | 54 | 483 | ||
| RR-3006 | 300 | 170 | 6997 | 153 | 485 | 311 | 241.3 | 165.1 | 12-1/4″ | 58 | 200 |
| RR-30012 | 13947 | 305 | 638 | 311 | 241.3 | 165.1 | 12-1/4″ | 58 | 312 | ||
| RR-30018 | 20889 | 457 | 790 | 311 | 241.3 | 165.1 | 12-1/4″ | 58 | 385 | ||
| RR-30024 | 27850 | 609 | 943 | 311 | 241.3 | 165.1 | 12-1/4″ | 58 | 469 | ||
| RR-30036 | 41843 | 915 | 1247 | 311 | 241.3 | 165.1 | 12-1/4″ | 58 | 628 | ||
| RR-30048 | 55745 | 1219 | 1552 | 311 | 241.3 | 165.1 | 12-1/4″ | 58 | 780 | ||
| RR-4006 | 400 | 230 | 9319 | 152 | 538 | 358 | 279.4 | 190.5 | 14-1/8″ | 65 | 303 |
| RR-40012 | 18700 | 305 | 690 | 358 | 279.4 | 190.5 | 14-1/8″ | 65 | 399 | ||
| RR-40018 | 28018 | 457 | 843 | 358 | 279.4 | 190.5 | 14-1/8″ | 65 | 453 | ||
| RR-40024 | 37400 | 610 | 995 | 358 | 279.4 | 190.5 | 14-1/8″ | 65 | 597 | ||
| RR-40036 | 56037 | 914 | 1300 | 358 | 279.4 | 190.5 | 14-1/8″ | 65 | 792 | ||
| RR-40048 | 74737 | 1219 | 1605 | 358 | 279.4 | 190.5 | 14-1/8″ | 65 | 980 | ||
| RR-5006 | 500 | 284 | 11164 | 153 | 577 | 397 | 304.8 | 203.2 | 15-5/8″ | 79 | 432 |
| RR-50012 | 22256 | 305 | 730 | 397 | 304.8 | 203.2 | 15-5/8″ | 79 | 589 | ||
| RR-50018 | 33347 | 457 | 882 | 397 | 304.8 | 203.2 | 15-5/8″ | 79 | 680 | ||
| RR-50024 | 44440 | 609 | 1035 | 397 | 304.8 | 203.2 | 15-5/8″ | 79 | 816 | ||
| RR-50036 | 66768 | 915 | 1339 | 397 | 304.8 | 203.2 | 15-5/8″ | 79 | 1002 | ||
| RR-50048 | 88951 | 1219 | 1644 | 397 | 304.8 | 203.2 | 15-5/8″ | 79 | 1224 | ||

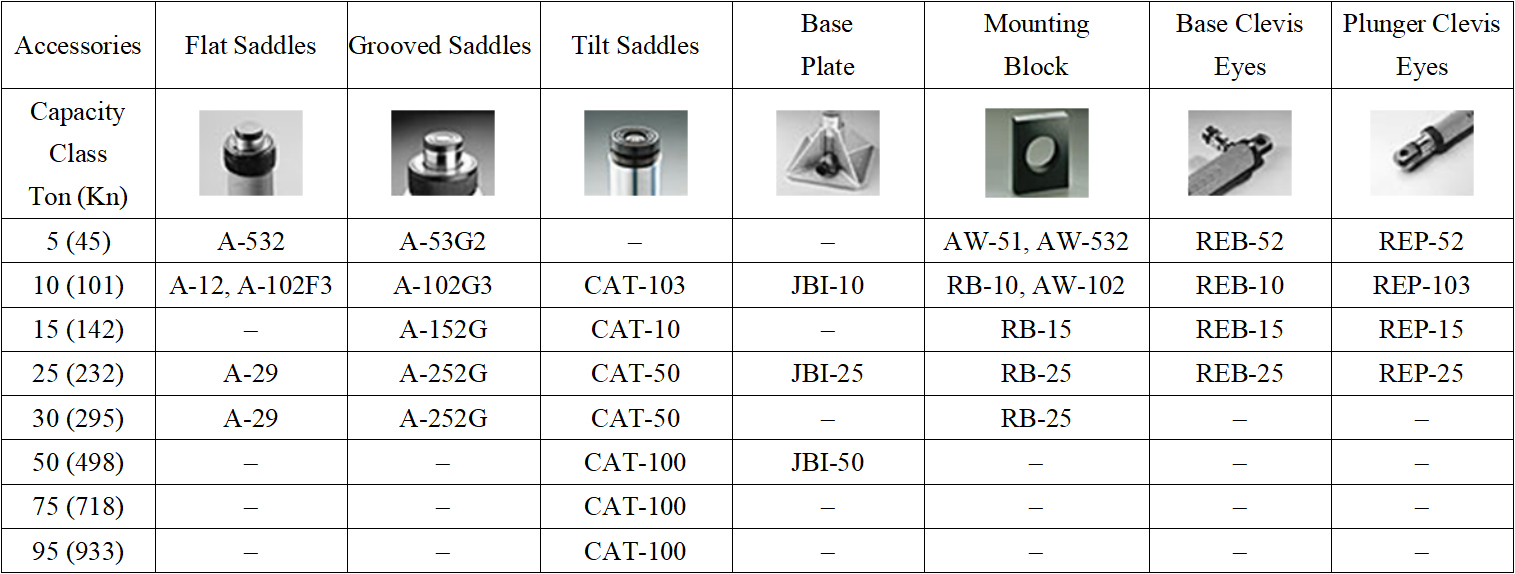

| Accessories | Flat Saddles | Grooved Saddles | Tilt Saddles | BasePlate | MountingBlock | Base Clevis Eyes | Plunger Clevis Eyes |
| Capacity ClassTon (Kn) |  |  |  |  |  |  |  |
| 5 (45) | A-53 2 | A-53G 2 | – | – | AW-51, AW-53 2 | REB-5 2 | REP-5 2 |
| 10 (101) | A-12, A-102F 3 | A-102G 3 | CAT-103) | JBI-10 | RB-10, AW-102 | REB-10 | REP-10 3 |
| 15 (142) | – | A-152G | CAT-10 | – | RB-15 | REB-15 | REP-15 |
| 25 (232) | A-29 | A-252G | CAT-50 | JBI-25 | RB-25 | REB-25 | REP-25 |
| 30 (295) | A-29 | A-252G | CAT-50 | – | RB-25 | – | – |
| 50 (498) | – | – | CAT-100 | JBI-50 | – | – | – |
| 75 (718) | – | – | CAT-100 | – | – | – | – |
| 95 (933) | – | – | CAT-100 | – | – | – | – |
