Product Introduction

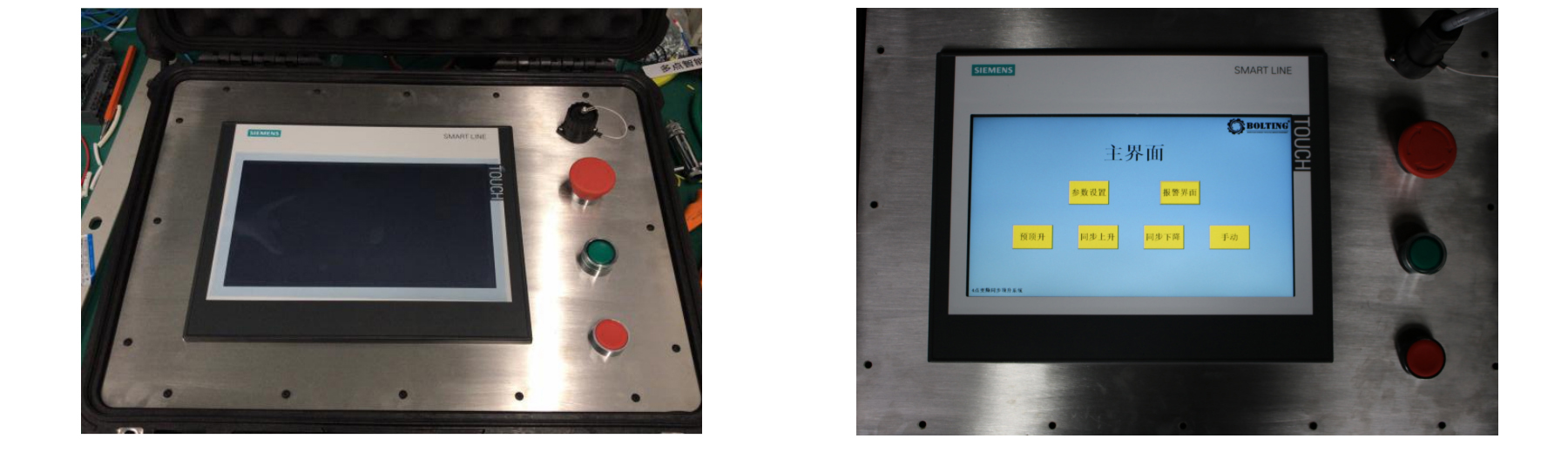

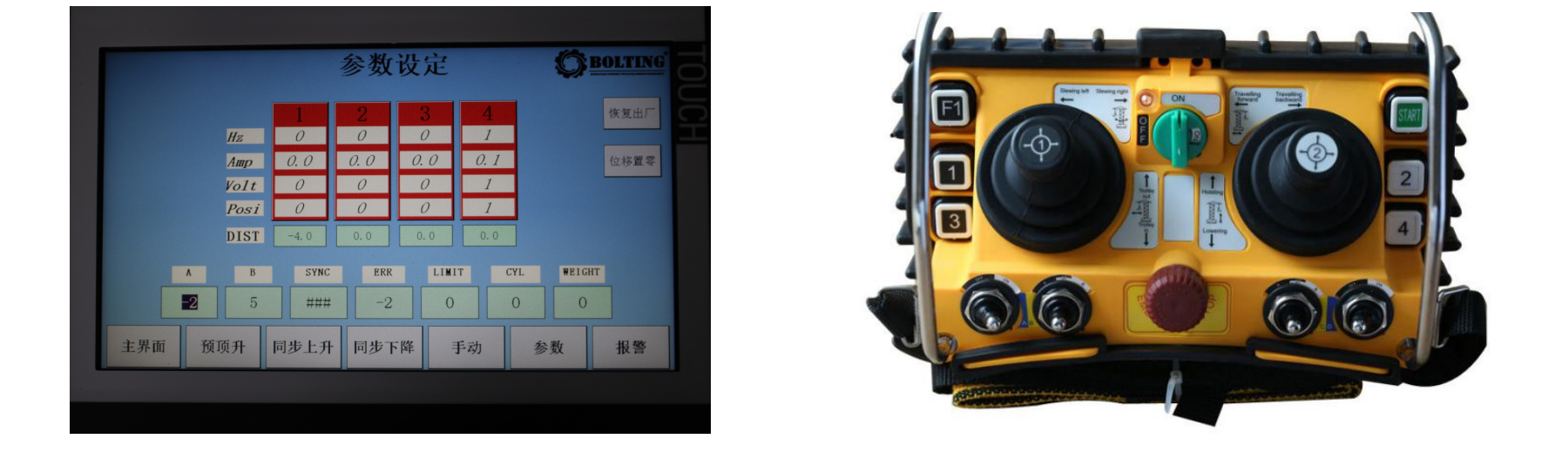

Systems include 4,8,12,16, 24,32,40,80 Lifting points, contact Power Team for larger SJS requirements up to 128 points and manifold systems up to 512 points;Positioning, lifting or lowering accuracy of +/- .040”(1 mm).;Safety features included: full stop due to power failure, sensor failure, pressure overload, tolerance error, uncontrolled load movement, etc;Intuitive graphic, touch screen control;Displayed information included: startup diagnostics, position of lift points relative to starting position, pressure at each lift point, status of each cylinder and status of alarms.SJS works with a wide range of cylinder types, tonnages and strokes to meet your application requirements;Operating pressure (up to) 10,000 psi (700 bar);Easy setup and remote or on-site support;

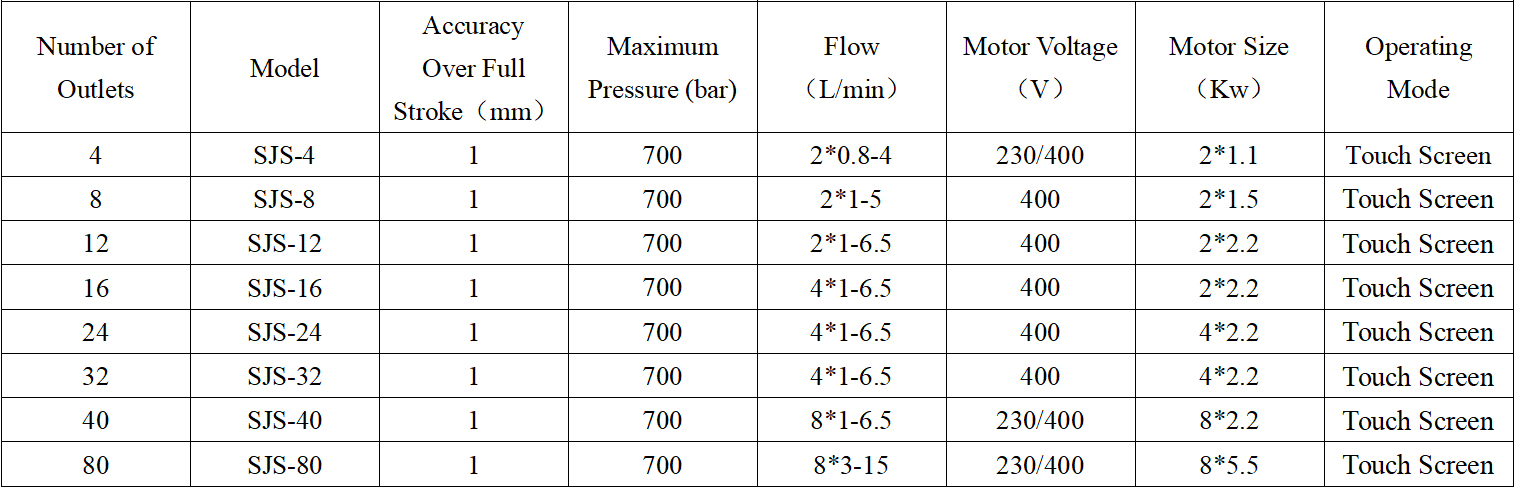

| Number of Outlets | Model | Accuracy Over Full Stroke（mm） | Maximum Pressure (bar) | Flow（L/min） | Motor Voltage（V） | Motor Size（Kw） | Operating Mode |
| 4 | SJS-4 | 1 | 700 | 2*0.8-4 | 230/400 | 2*1.1 | 触摸屏 |
| 8 | SJS-8 | 1 | 700 | 2*1-5 | 400 | 2*1.5 | 触摸屏 |
| 12 | SJS-12 | 1 | 700 | 2*1-6.5 | 400 | 2*2.2 | 触摸屏 |
| 16 | SJS-16 | 1 | 700 | 4*1-6.5 | 400 | 2*2.2 | 触摸屏 |
| 24 | SJS-24 | 1 | 700 | 4*1-6.5 | 400 | 4*2.2 | 触摸屏 |
| 32 | SJS-32 | 1 | 700 | 4*1-6.5 | 400 | 4*2.2 | 触摸屏 |
| 40 | SJS-40 | 1 | 700 | 8*1-6.5 | 230/400 | 8*2.2 | 触摸屏 |
| 80 | SJS-80 | 1 | 700 | 8*3-15 | 230/400 | 8*5.5 | 触摸屏 |
