Hydraulic Tensioner Pumps

Light Electric Hydraulic Tensioner Pumps

PEM1506（Mechanical pressure gauge）

・The PES series hydraulic stretching pumps all use servo motors and have CNC one click operation function, which is simple and convenient;

・Clear and visible pressure, equipped with self diagnosis and testing functions, automatically maintaining and supplementing pressure;

・The electrical equipment is equipped with an air cooler, which can work continuously for 8 hours;

・Beautiful exterior design, aluminum alloy fuel tank, easy to dissipate heat, compact size, light weight, and easy to carry;

・There are multiple models available according to different needs, and they are equipped with 6L and 8L fuel tanks for easy selection;

PEA1506（Automatic pressure compensation）　　PES1506（Servo motor，
Automatic pressure compensation
）

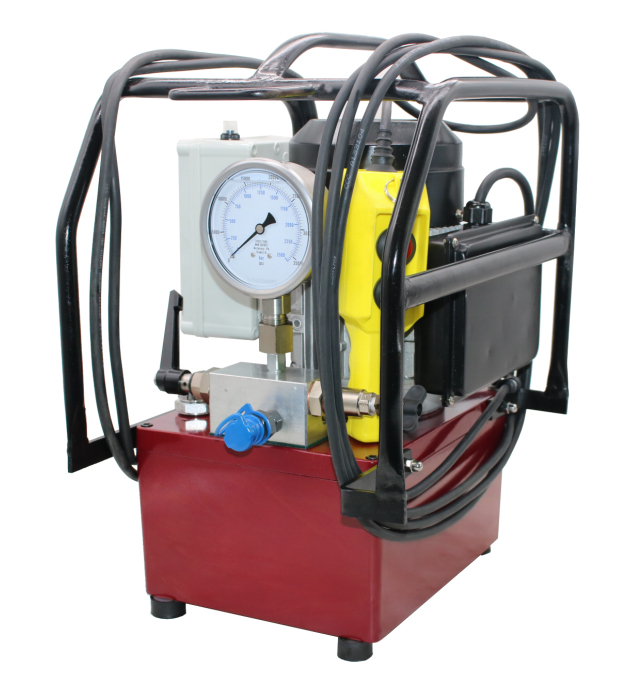

Electric Hydraulic Tensioner Pumps

・The PTE series hydraulic tensioning pump adopts a brushless motor, which can still provide large flow at low power, and the hydraulic oil can be used for more than 300 hours;

・Equipped with a hydraulic oil filter, the hydraulic oil can be used for more than 300 hours;

・Automatically shut down when reaching the set pressure to avoid misoperation, with automatic pressure replenishment function;

・Equipped with a compact frame to protect the pump body, lightweight and convenient for high-altitude operations on site;

・5-meter detachable remote control cable, remote control operation, convenient for transportation and maintenance of pump body;

・There are multiple models available according to different needs, and they are equipped with 12L, 20L, and 33L fuel tanks for easy selection;

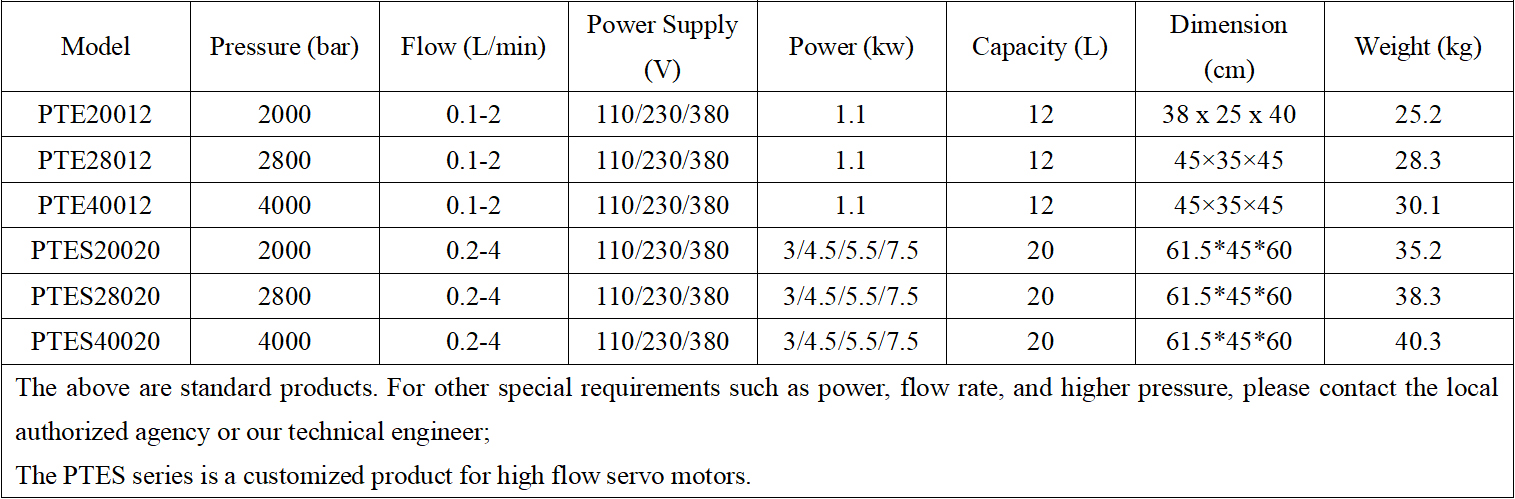

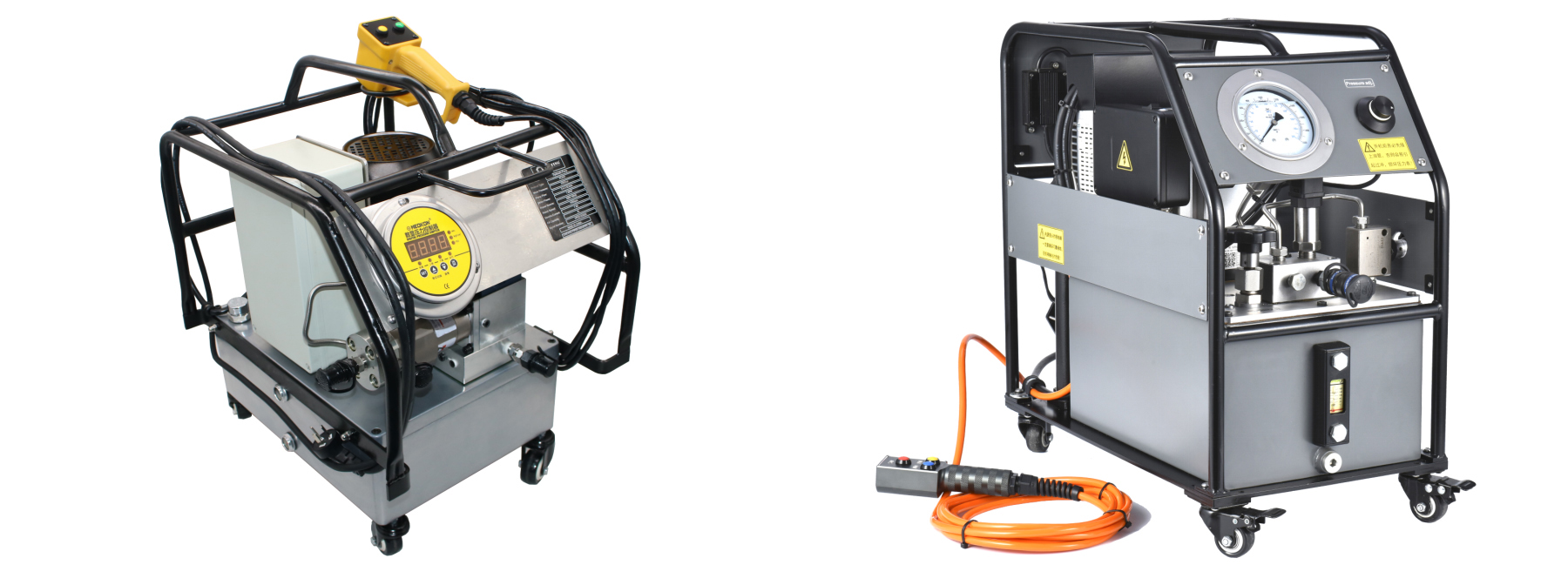

PTE20012 Electric Hydraulic Tensioner Pump　　　　　　　PTES20020 Electric Hydraulic Tensioner Pump

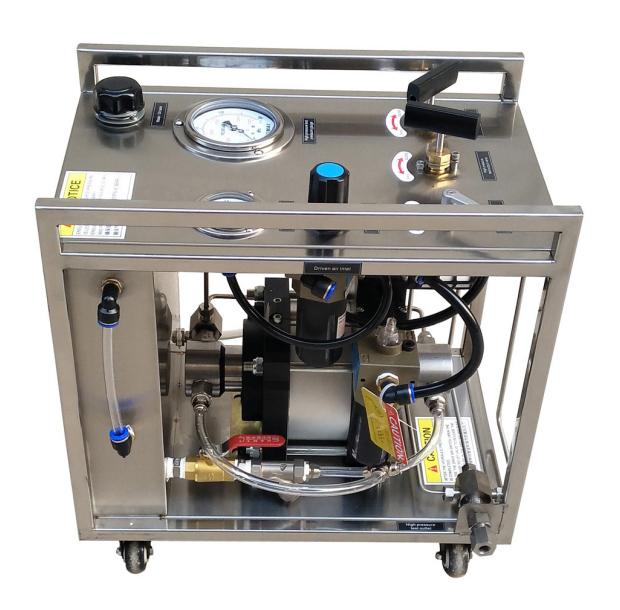

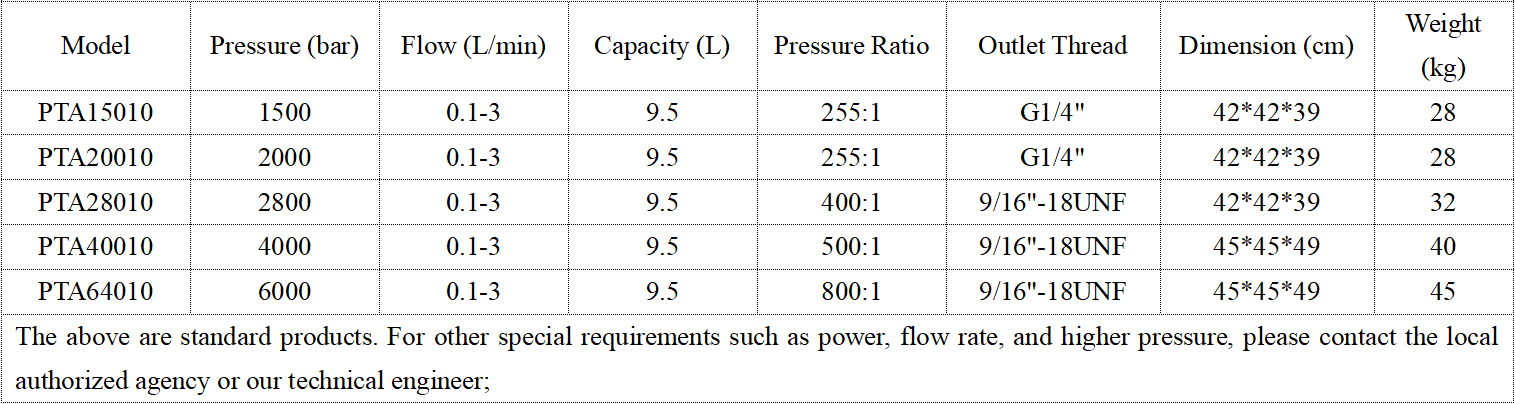

Pneumatic Hydraulic Tensioner Pumps

・General purpose, high pressure air driven pump unit for products requiring up to 6000bar hydraulic pressure;

・Compact, lightweight, rugged steel frame for protection and easy handling;

・Prelubricated pump element, does not require an airline lubricator;

・Easily adjustable output pressure control;

・Integrated and protected easy to read glycerin filled gauge;Safety relief valve limits output pressure;

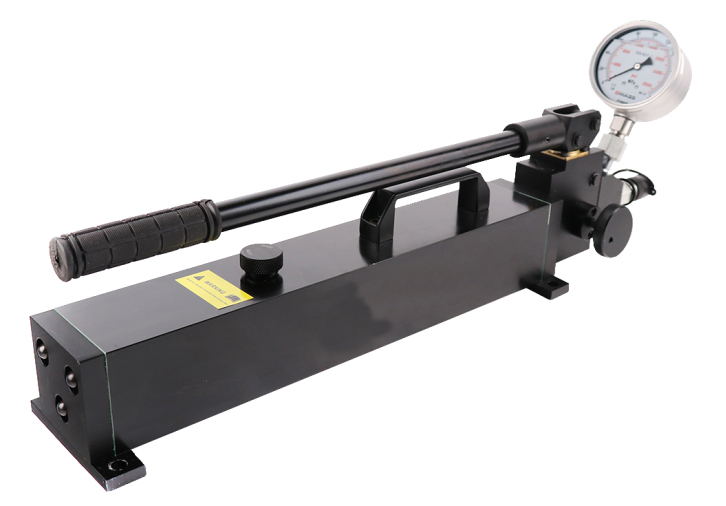

Manual Hydraulic Tensioner Pumps

・Pressure Range – 0 to 3000 bar;Two-speed design reduces handle effort by 40%;

・Convenient fill port enables pumps to be filled in a horizontal or vertical position;

・Large valve knob gives added control for slowly metering loads down;

・Extremely lightweight, easy to transport with the aluminum body design;
