Hydraulic Cylinder Pumps

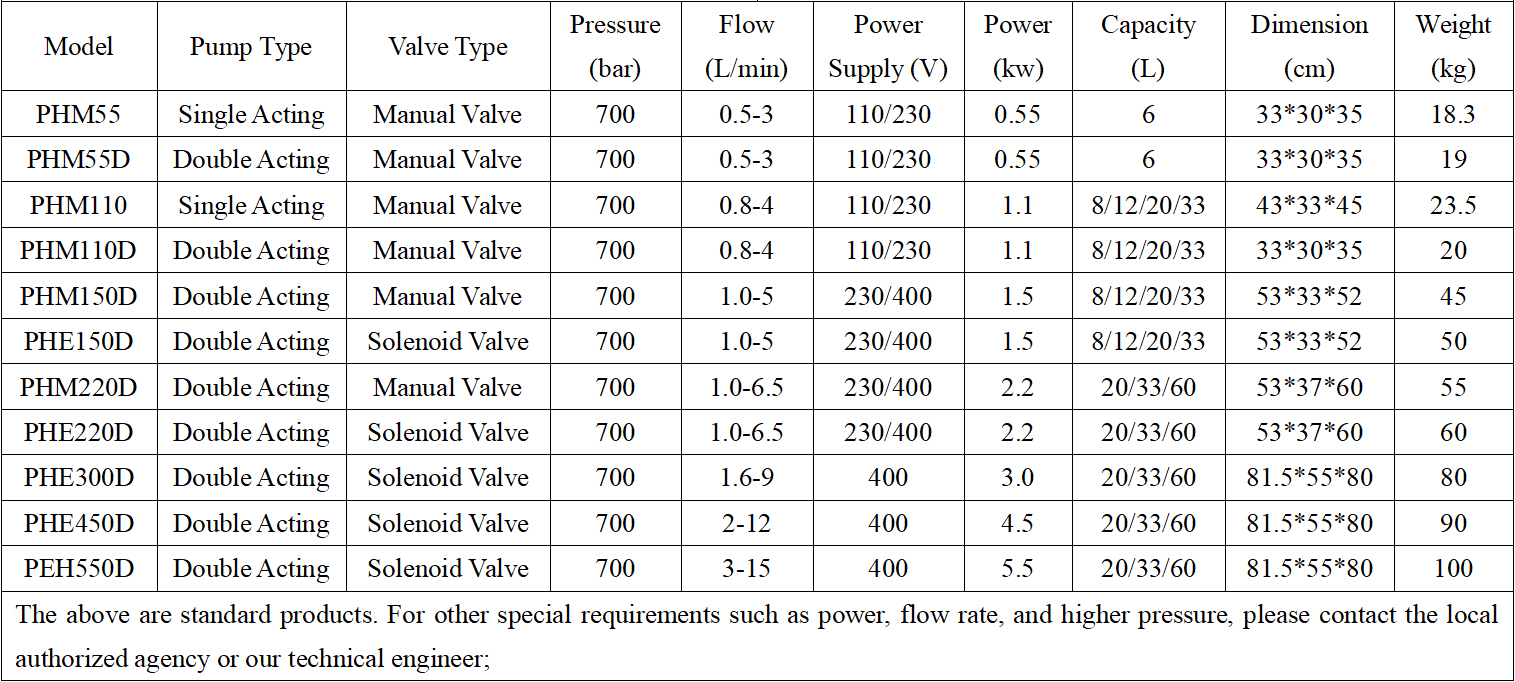

Electric Hydraulic Cylinder Pumps

・Electric hydraulic pumps are pray coating, anti-corrosion, pollution-resistant, durable;Lightweight and compact design make it easy to be moved;

・Double speed pump design, with the high flow in low pressure;

・The actuator can be fast moved on no-load status;

・Internal high and low pressure automatic reversing valve and external adjustable pressure valve to make it easy to calibrate the working pressure and avoid the over load;

・Motor starter has the function of preventing overload, overheat and leakage. The pump can be matched with both Double Acting and Single Acting cylinders;

・Choosing the Solenoid Valve valve electric hydraulic pump, remote operation can be realized;

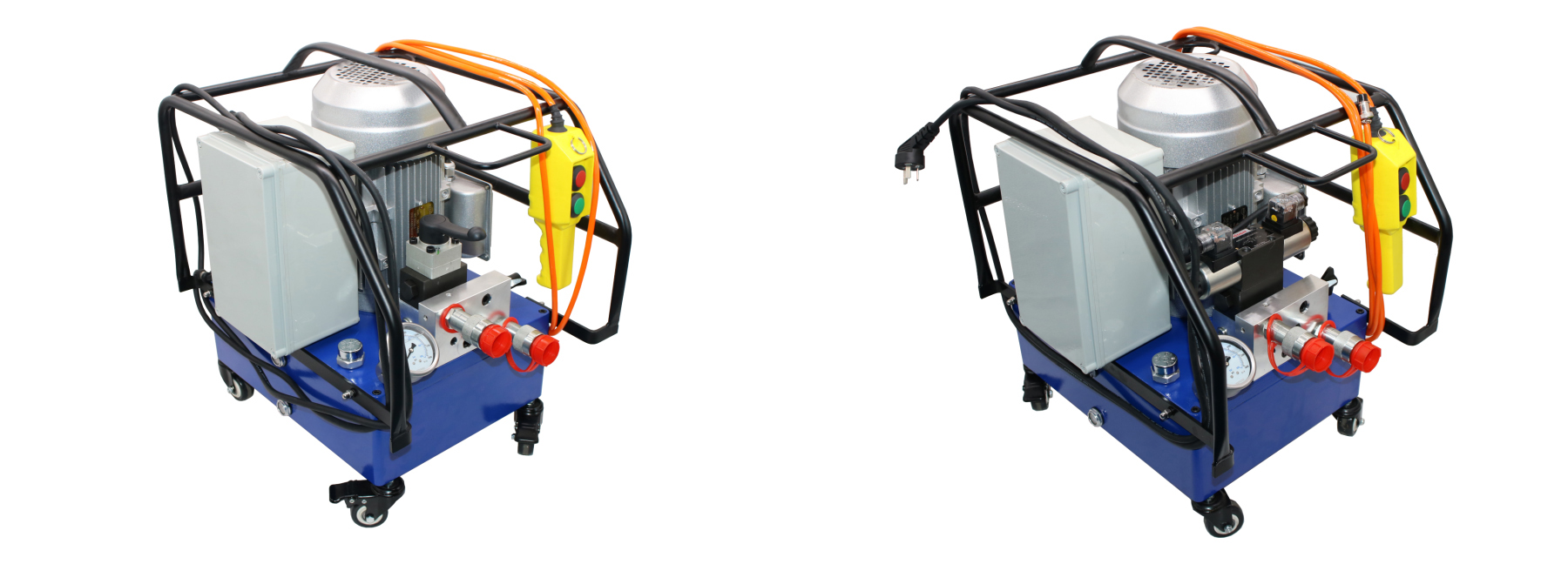

PHM220D（Manual Valve）　　　　　　　　　　　　　　　PHE220D（Solenoid Valve ）

Pneumatic Hydraulic Cylinder Pumps

SPA701

・Working pressure 700 bar;

・Compact, lightweight & powerful;

・Standard 7 bar air input pressure required;

・Choice of 2-way or 4-way control valves;

・Internal safety overload valve;

・Reservoir oil sight level gauge;Standard oil reservoir capacities up to 10 litres;

SPA701R　　　　　　　　　　　　　　　　　　　　SPA702

SPA702D　　　　　　　　　　　　　　　　　　　　SPA706D

Manual Valve Hydraulic Cylinder Pump

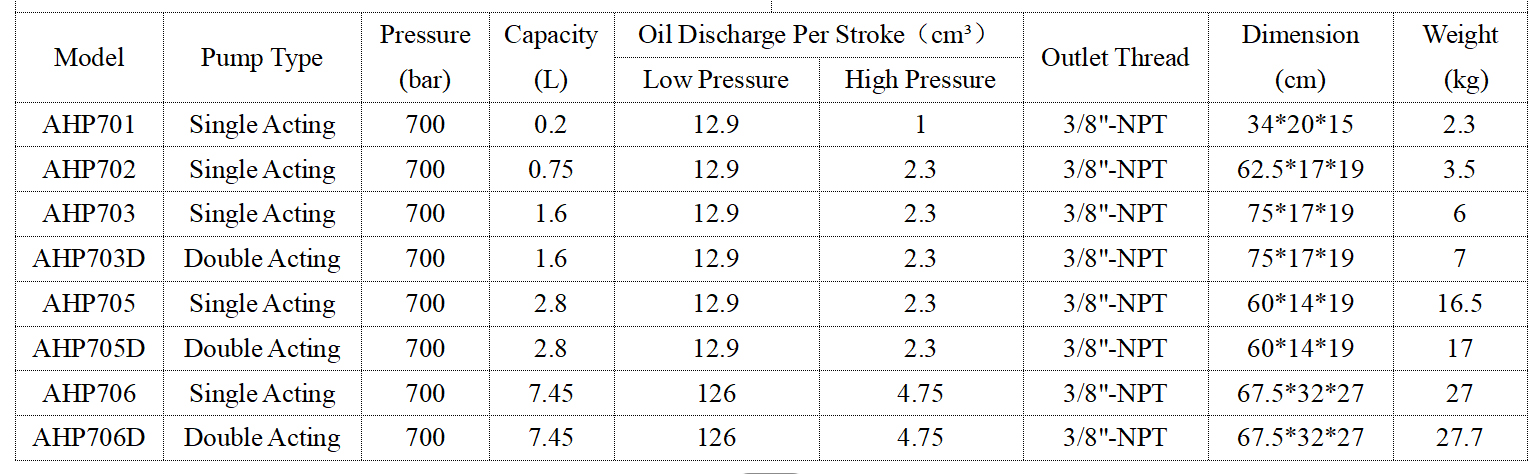

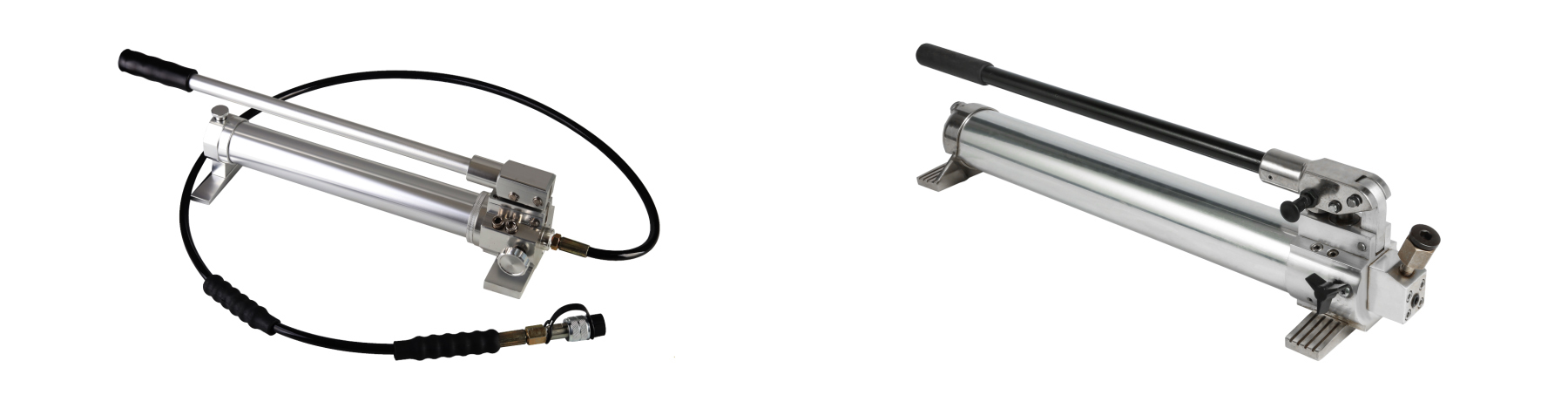

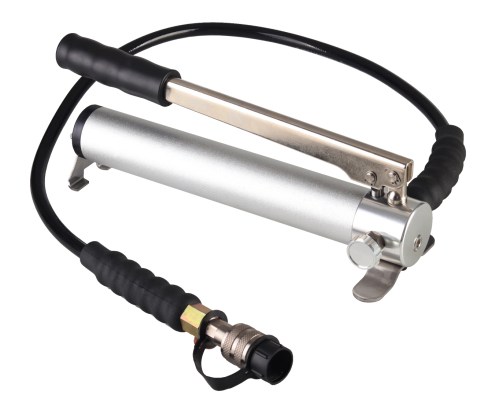

AHP701

・All Manual Valve pumps have two major features – sturdy and durable structure and low handle operating force;

・Aluminum alloy structure (AHP701-705), with a fully grip and anti loosening design for oil return torque, truly suitable for frequent daily use and industrial grade requirements;

・The 700bar ultra-high pressure model has a lightweight design that better meets the needs of users;

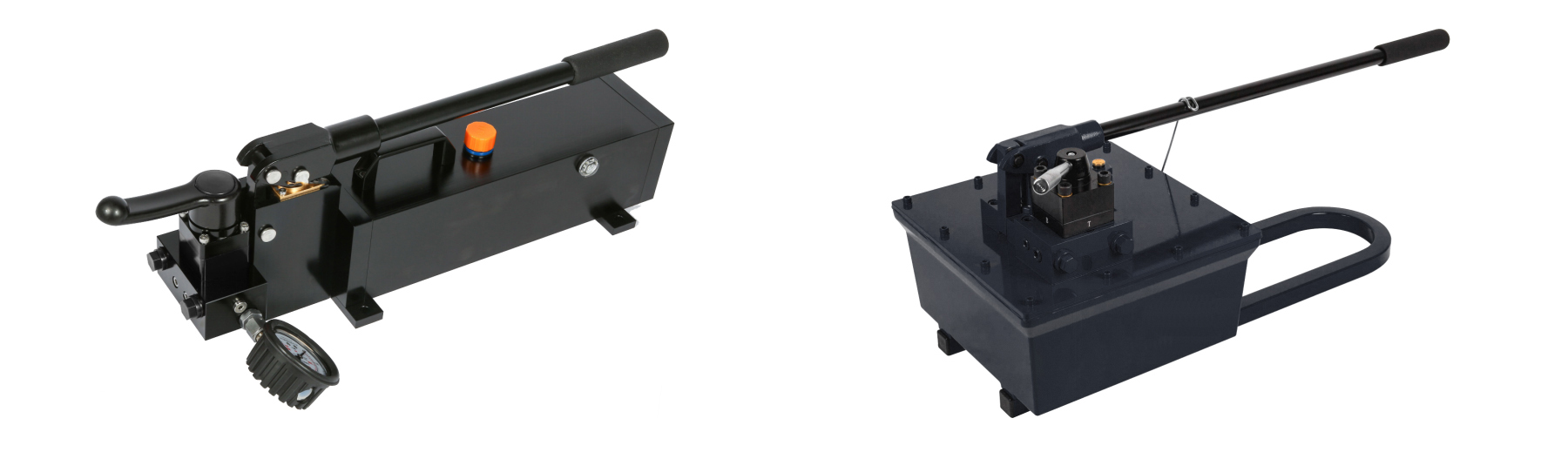

AHP702　　　　　　　　　　　　　　　　　　　AHP703

AHP705D 　　　　　　　　　　　　　　　　　　　AHP706D
