Hydraulic maintenance tools

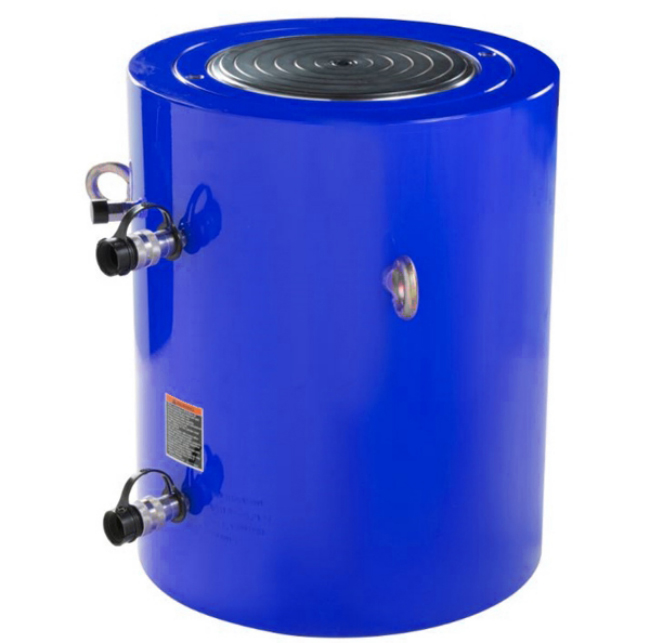

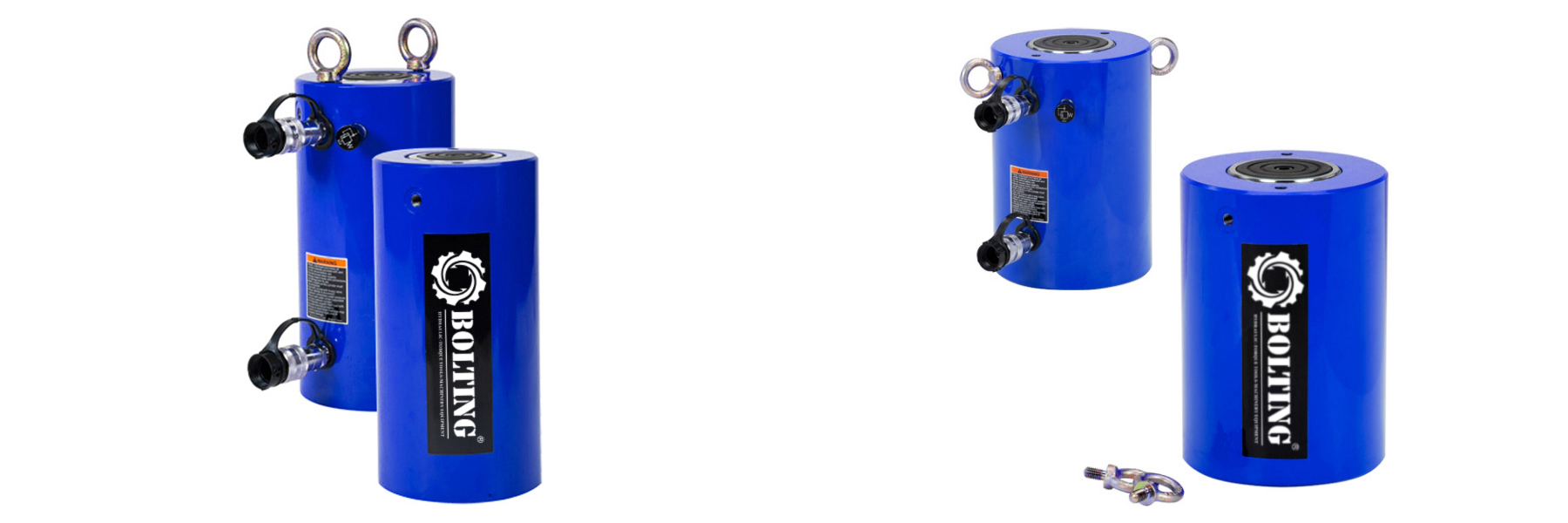

High Tonnage Hydraulic Cylinders（Double-Acting）

・Double-acting for fast and controlled advance and retract;

・Nitrocarburized surface resists side-loading and cyclic wear;

・10% side-load resistance over full cylinder stroke;

・Weather protected, inside and out;

・Upper and lower replaceable bearings support the plunger throughout the stroke;

・Certified lifting eyes,Base mounting holes;

・Collar threads included on models up to 250 ton. Optional on 300 ton and higher;

・Maximum working pressure up to 10,000 psi (700 bar) ;

・Complies to ASME B30.1;
