Hydraulic Torque Tools

・70Mpa Max working pressure and the accuracy keep within ±3%;

・All together 12 models with the range from 110N.m to 140882N.m, which covers the most bolts size;

・The 360°×180°degree swivel is free to operation with no space limitation;

・The square drive operate with high intense socket and suitable with large range of bolts;

・360 degree adjustable reaction arm allows placing in any support point;

・Compact design with raw material of advanced aluminum-titanium alloy, high intense;

Model	Minimum torque(N.m)	Max. torque (N.m)	Drive Shaft(in)	A (mm)	B (mm)	C (mm)	R (mm)	E (mm)	F (mm)	G (mm)	Weight (kg)
07MXT	110	1100	3/4	108.1	139.3	110.8	20.5	42	65.8	76.2	1.8
1MXT	188	1882	3/4	133	182	130	25.8	52	77	96	2.5
3MXT	447	4466	1	165	249	170	34.8	70	98	127	4.9
5MXT	745	7451	1-1/2	184	286	202	39.8	81	125	149	7.6
8MXT	1073	10732	1-1/2	207	326	228	46.8	90	134	172	11.2
10MXT	1536	15359	1-1/2	216	336	237	50.8	100	144	181	13.5
15MXT	2011	20108	2-1/2	241	391	273	56.8	110	164	206	20.8
20MXT	2639	26392	2-1/2	256	433	287	59.8	120	187	221	25.9
25MXT	3540	35397	2-1/2	293	464	323	70.8	138	206	258	34.4
35MXT	4874	48740	2-1/2	315	494	351	76.8	153	217	279	50
50MXT	7066	70660	2-1/2	326	528	376	78.8	162	226	291	85
110MXT	14088	140882	4	473	758	520	115	210	307	415	220

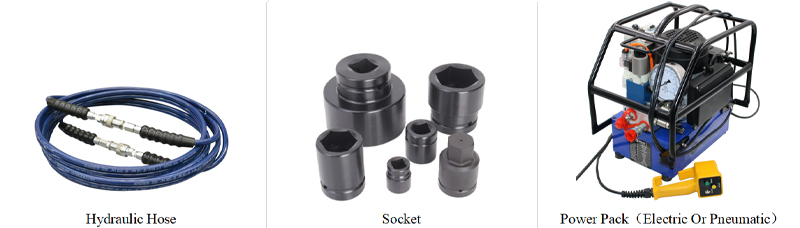

Complete set of required accessories:

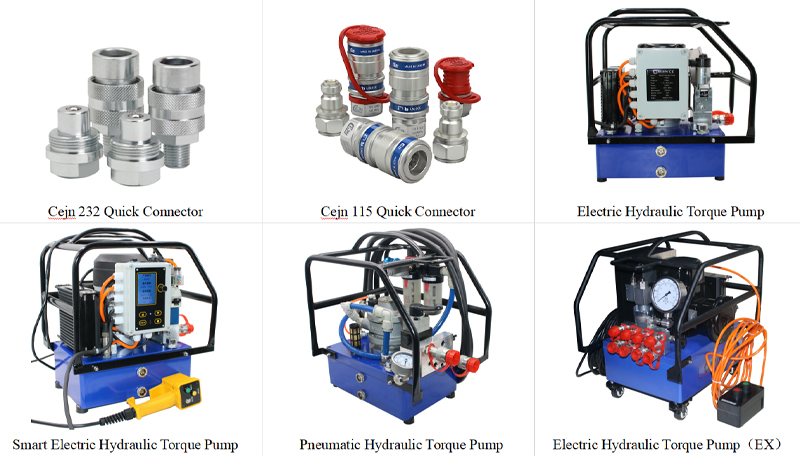

Optional:

Usage Scenario:
